Programmable smart relay board with CAN – PoRelay8

29,00 139,00  excl. VAT & Shipping

For 48V version of PoRelay8 click here.

This CAN relay board allows expanding the number of outputs of the PoKeys device by using the PoExtBus. It features 8 relay outputs. Multiple boards can be daisy-chained with use of a CAN bus for up to 80 additional outputs.
It can be programmed with PoBlocks software using any PoKeys57.

SKU: PoRelay8 Category:

Description

PoRelay8 – programmable smart relay board with CAN BUS allows expanding the number of outputs of the PoKeys device.

Because of using noise imune PoExtBus Smart or CAN interface PoRelay8 is very reliable.

Smart relay board – PoRelay8 – with CAN has improved robustness against noise on communication lines. Another improvement over similar products are failsafe configuration options.

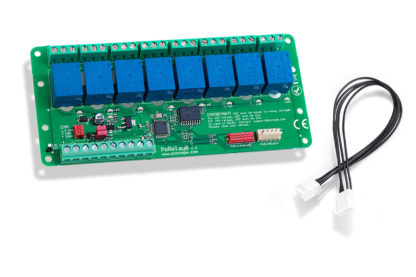

Relay board incorporates 8 electromechanical relays with terminals for NO, NC and common relay contacts. There is one green LED for power supply indication and 8 additional LEDs for relay operation indications. The device can be mounted to a standard DIN rail using the DIN rail mount adapters or directly via 4 mounting holes.

Smart relay board is available either with 12 V or 24 V relays. For 48V PoRelay8 board click here.

Features of PoRealy8 board:

  • Daisy chaining of up to 10 boards from the single PoExtBus connector
  • 8 built-in electromechanical relays with NO, NC and common contacts
  • 5 wires board-to-board ribbon cable for connecting to master device or chaining
  • Improved reliability over original PoExtBusRe boards
  • Programming in PoBlocks using any PoKeys
  • Daisy-chaining over CAN bus, allowing greater distances between each board in the chain with much improved noise immunity
  • Prepared for DIN rail mounting with DIN rail mount adapter

Now with support for PoBlocks: https://blog.poscope.com/smart-relay8-with-poblocks/

Comparison: PoExtBusRE vs. PoRelay8

The PoRelay8 smart relay board replaces the (now obsolete) PoExtBusRE output extension device. Although, the PoRelay8 has the same physical dimensions as PoExtBusRE, it is a significant upgrade in reliability, robustness to electrical noise and functionality.

Industry standard CAN-bus allows chaining of multiple PoRelay8 CAN relay devices. Moreover, embedded error checking algorithms prevent electrical noise from affecting the state of the outputs. First PoRelay8 still connects directly to the PoKeys device using the PoExtBus. With PoKeys57 series devices, even data over PoExtBus connection is protected with error detection, making the solution trustworthy.

First PoRelay8 CAN relay board acts as a bridge between PoExtBus and CAN. Because of simpler operation, logical order of the devices doesn’t depend on the physical order of the devices. Instead, PoKeys aplication provides easy setup of device configuration and logical position in the sequence.

Additional information

Weight 100 g
Dimensions 1 × 1 × 1 cm

Downloads

MANUALS

PoRelay8 user manual (PDF)
