Torch height controller system PlasmaSensCompact is an universal THC for precise plasma cutting.

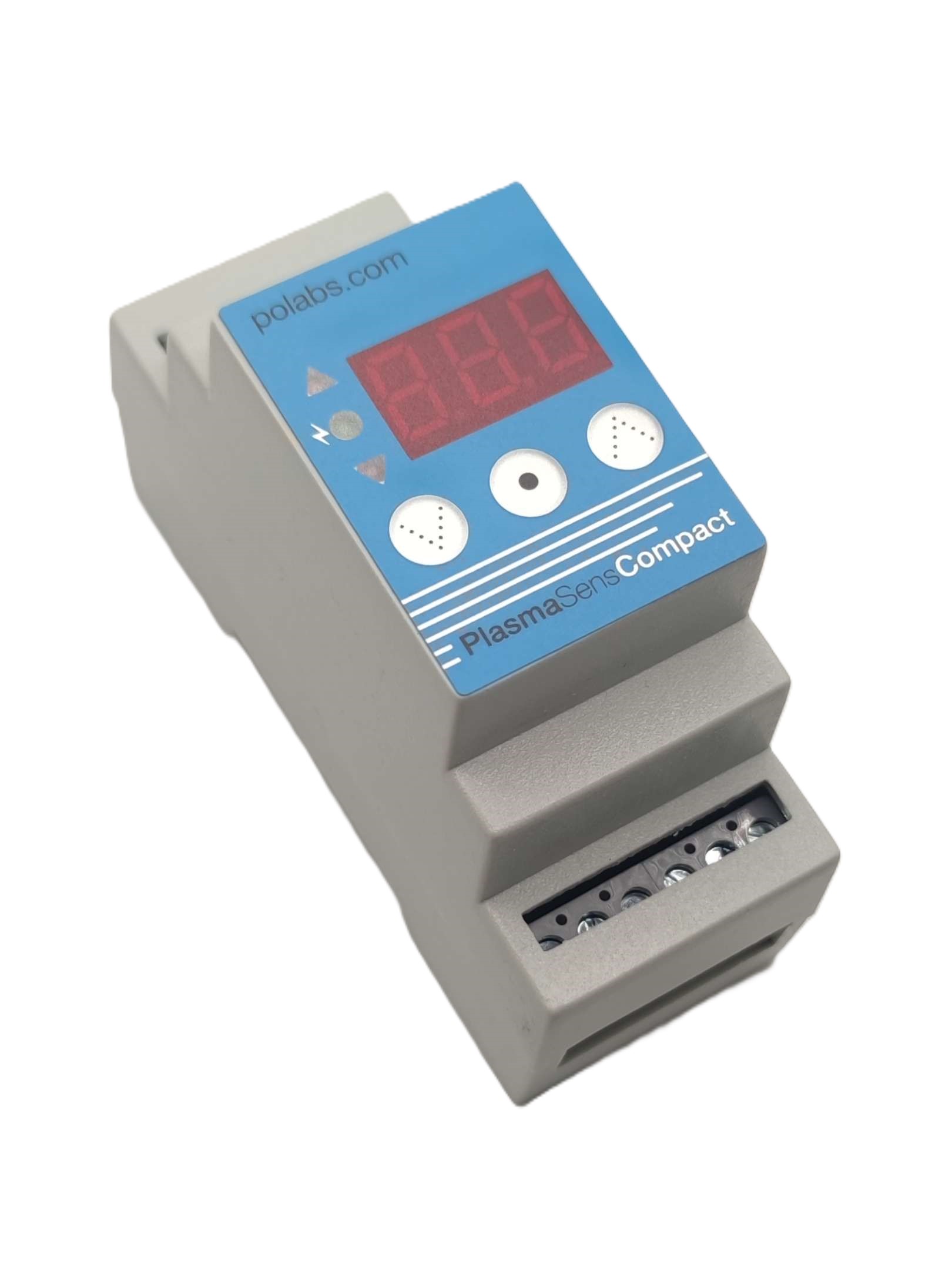

PlasmaSensCompact is an integrated torch height controller and sensor for plasma cutter equipment. It merges the functionality of PlasmaSens and PlasmaSensOut into a single device, eliminating the need for a separate optical link between transmitter and receiver.
PlasmaSensCompact is a complete and reliable torch height control system as standalone unit. PlasmaSensCompact has standard programmable ARC_OK, UP and DOWN signals. Generally it is compatible with most CNC controller boards on the market.

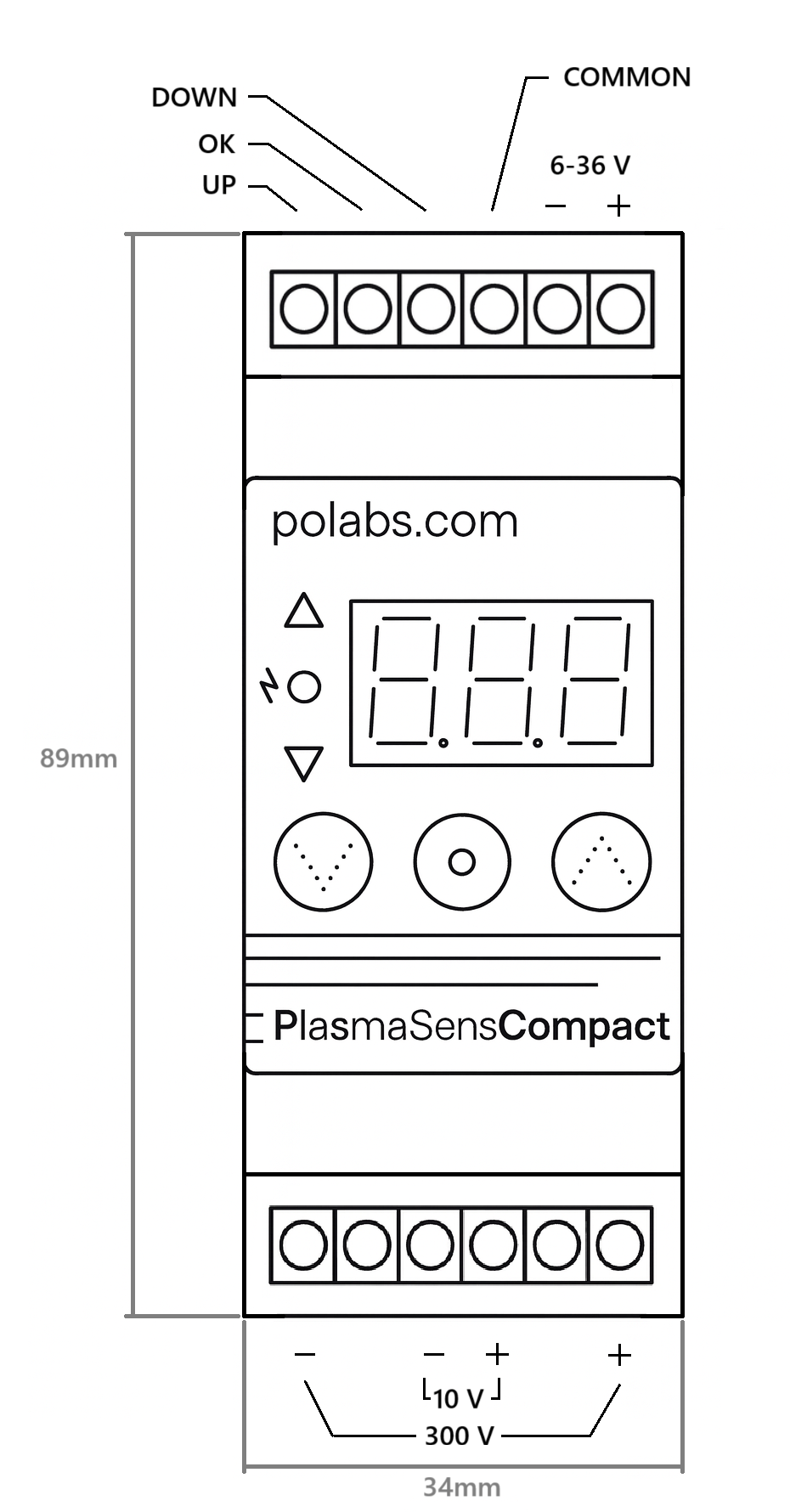

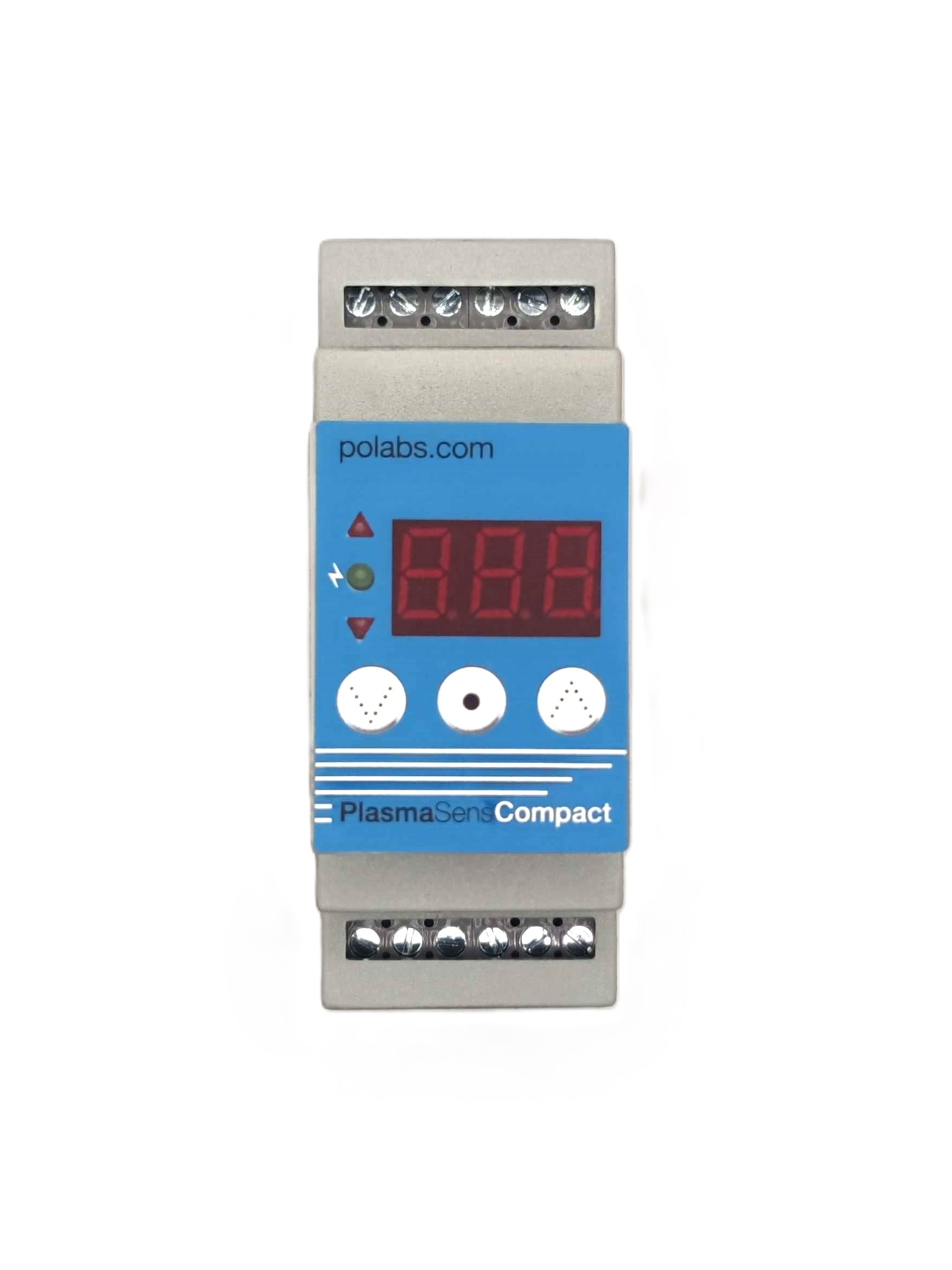

User interface is simple and user friendly. On the left there are 3 LED diodes to signalize state of the outputs. Next on the right side is also LED display. It has great readability also in high luminosity environment. In default state it shows current arc voltage. However menus appears on LED display during settings.
Under LED display there are 3 buttons. They allows quick and efficient moving through menus. User can set the following THC parameters: reference voltage, hysteresis (non-active range around reference height), delay time and anti-dive limit voltage. All parameters are adjustable during operation.
It doesn’t need any drivers or special softwareand is compatible with most CNC software and hardware that accepts OK, Up and Down signals.
Features
- Isolated output signals: Arc OK, Up and Down (DC solid state)
- Programmable reference and hysteresis voltage, delay time and anti-dive limit voltage
- Current plasma voltage presentation on LED display
- Arc present, up and down – LED signalization
- Test mode operation
- DC power supply (6- 36 V)
- Compatible with most CNC controller boards including PoKeys57CNC
- DIN-rail mountable housing
Package includes:
- PlasmaSensCompact device
