Isolation Adapter Board

Description

Isolation Adapter Board

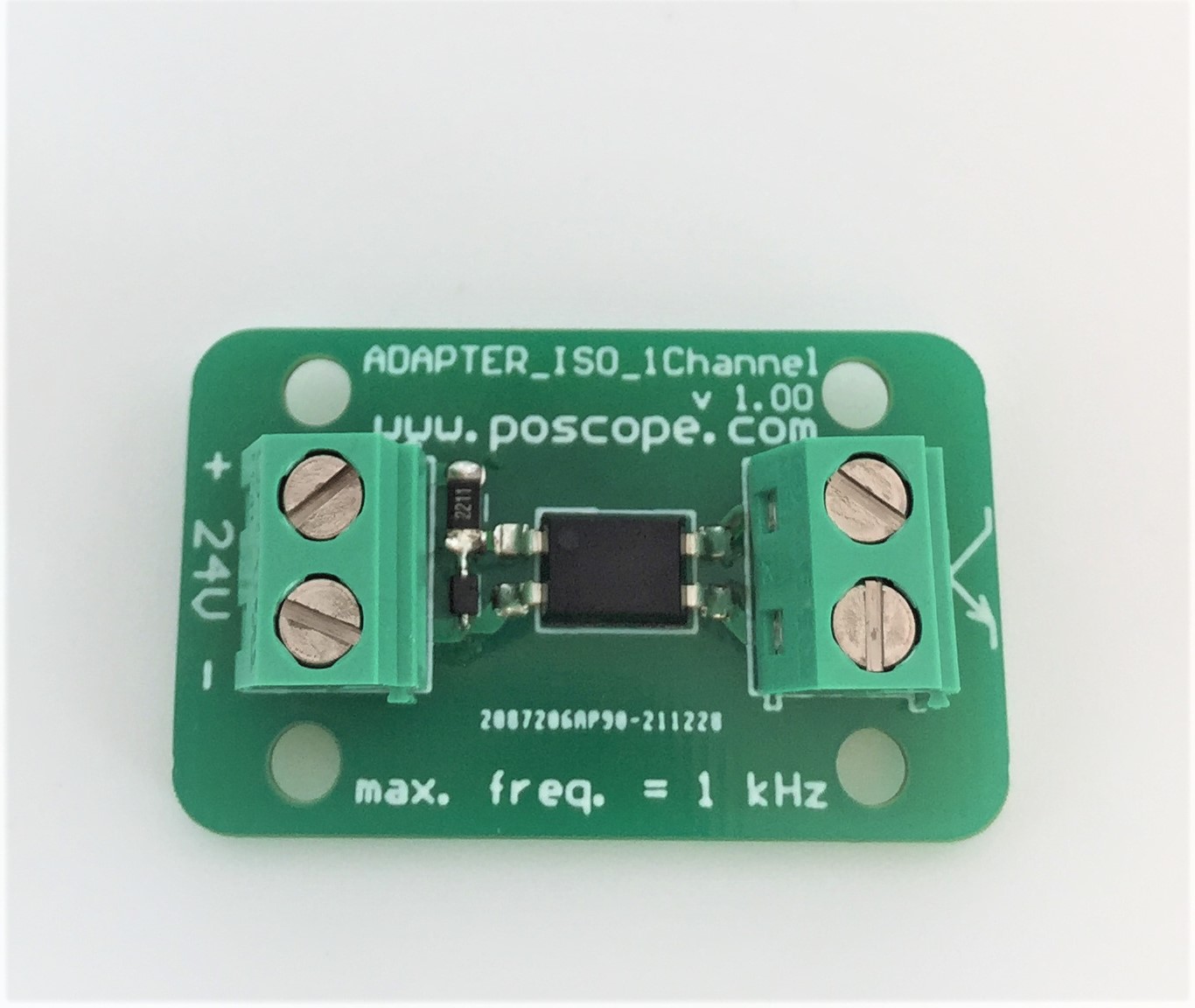

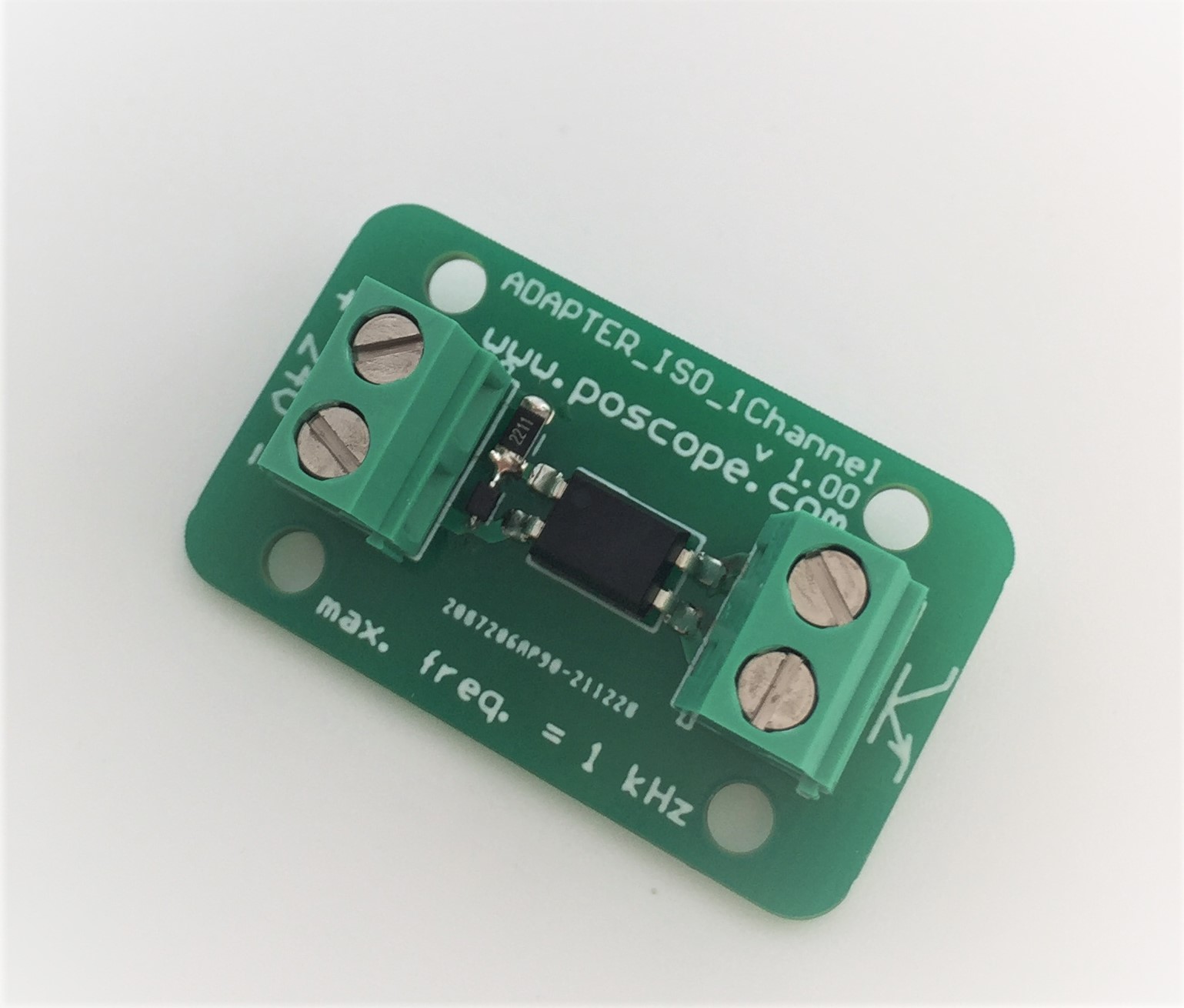

The isolation adapter board is professional, robust, wide use, and easy to use the board. The isolation board can be used with most CNC controllers on the market and I/O devices. 1-channel optoisolated for safe operation. The board can be mounted easily on a DIN-rail mount adapter or mounting holes.

Features

• Driving port signal voltage,
• remove electrical noise from signals,
• isolate the low-voltage device from high voltage circuit,
• work stability,
• high efficiency.

Electrical characteristics:

• Input voltage from 12 V to 24 V
• Max voltage on the output is 80V relative to GND
• Max output current is 50mA

Applications

• Optocoupler isolator is used with other electronic devices to provide isolation between low and high-voltage circuits.
• Microprocessor input/output switching,
• DC  power control,
• Communication equipment protection,
• Noise suppression

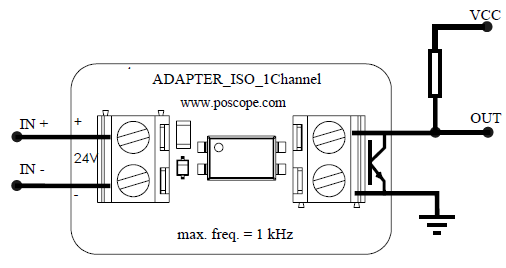

Wiring diagram
