• popower48

PoPower48-320

58,00  excl. VAT & Shipping

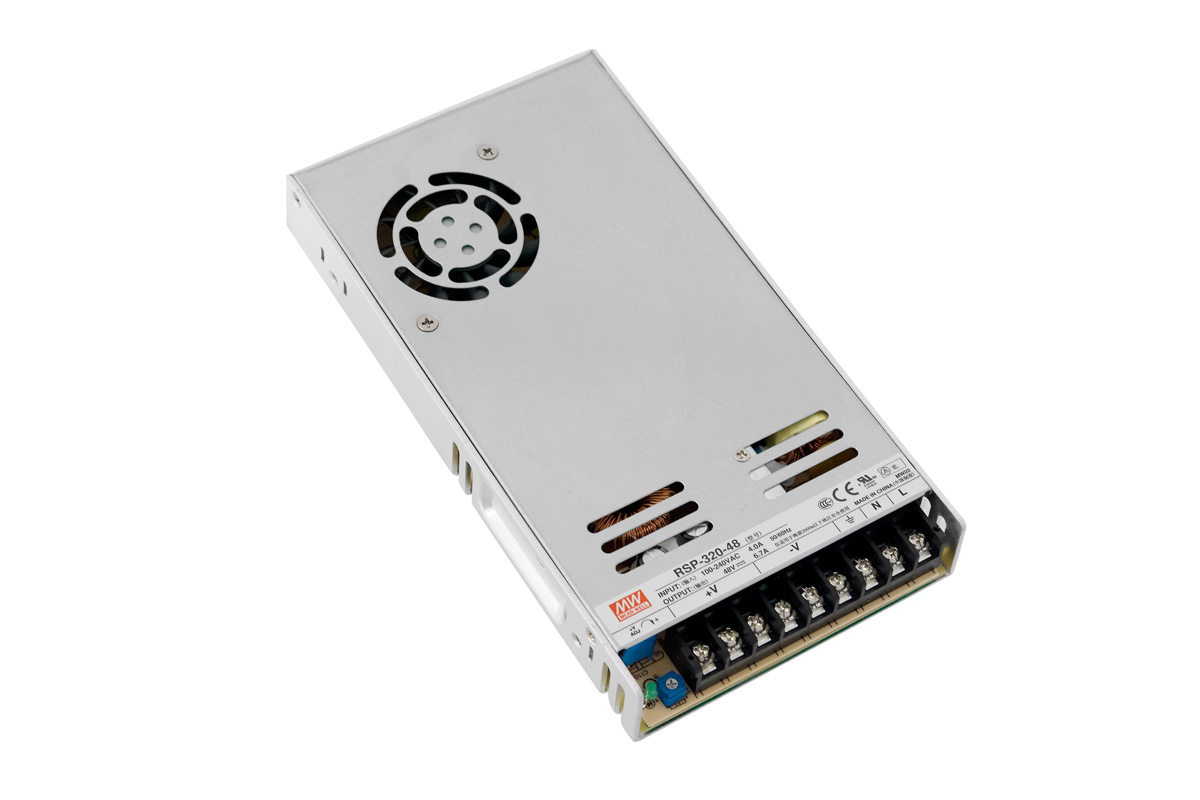

The PoPower48-300 is a high performance, cost effective 48V, 320W switching power supply. The power supply incorporates an advanced architecture to achieve an exceptional power density and efficiency.

SKU: PoPower48320 Category:

Product Description

  • High MTBF
  • Superior Reliability
  • High efficiency
  • Easier system cooling
  • -25 to +70°C operating temperature
  • Low derating above 50 °C (up to 70% load available at 70° C)
  • Improved system power optimasition
  • Curve B EMC
  • LED Power Indicator
  • Small Size: 159 mm X 97 mm X 38 mm
  • High MTBF
  • Input Voltage: 88- 264VAC
  • Input Frequency: 47-63 Hz
  • Output Voltage (adjustable): 41-56V
  • Max. Current: 6,7A
  • Load Reg.: +-0,5%
  • Line Reg.: +-0,2%
  • Ripple Noise max: 250mV
  • Efficienty (max): 90%

Additional Information

Weight 900 g
Dimensions 1 x 1 x 1 cm

Downloads

MANUALS

popower48-320_user_manual.pdf
